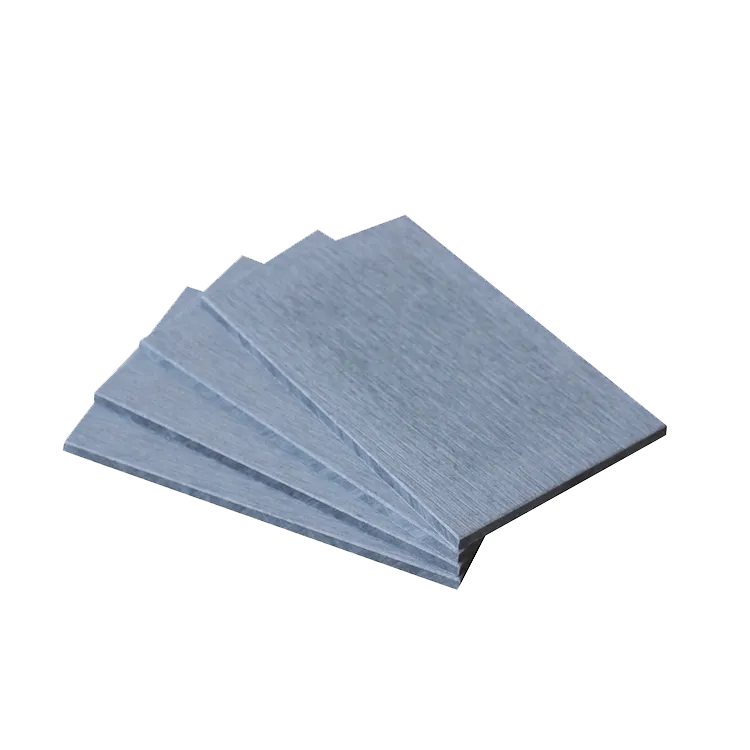

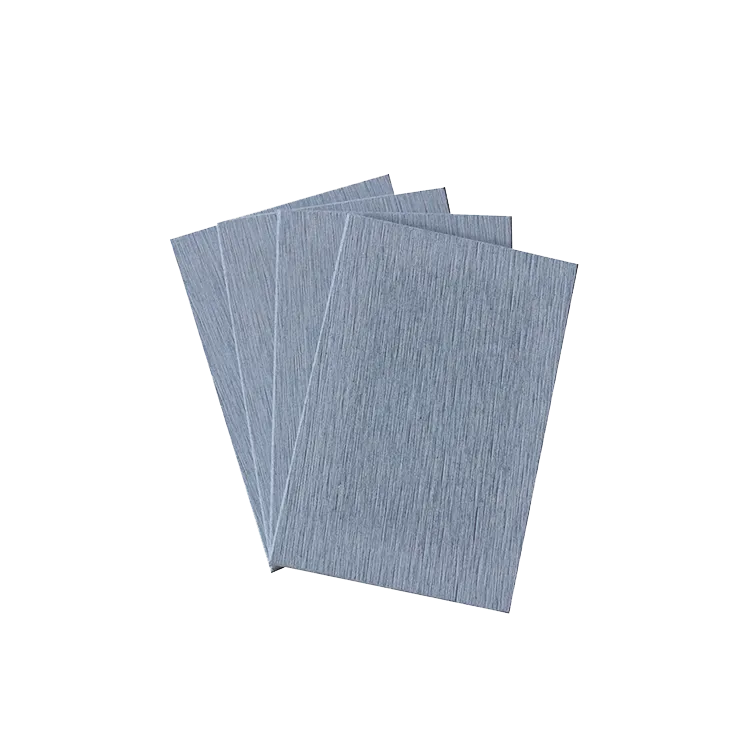

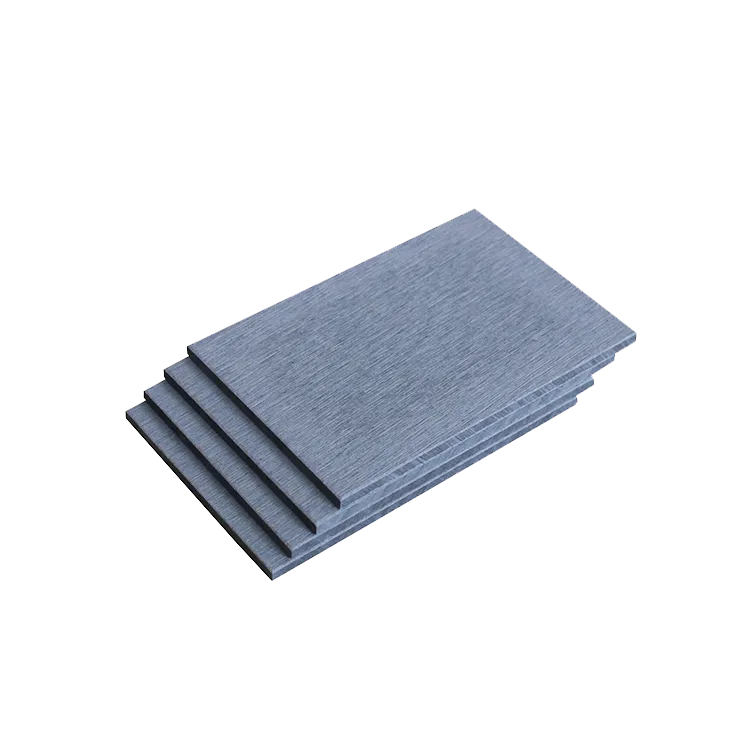

Fiber Cement Flat Sheet

Asbestos-free Class A fireproof substrate with 30+ year service life, resisting moisture, mold, pests and UV damage. Lightweight yet dimensionally stable, low shrinkage avoids warping. Versatile for interior partitions & exterior cladding, eco-friendly with recycled raw materials, meeting LEED standards and cutting long-term building maintenance costs.

Contate-nos

Solicitação on-line

Detalhado

Fiber Cement Flat Sheet: Core Technology, Industrial Applications and Long-Term Market Outlook

1. Industry Background and Rising Global Market Demand

The global Fiber cement board market reached USD 18.65 billion in 2025, with flat fiber cement sheets accounting for over 42% of total segment revenue, and forecasts predict a 6.5% compound annual growth rate through 2034, hitting USD 32.75 billion by the end of the decade. This consistent expansion stems from two overlapping global shifts: stricter building safety regulations and widespread demand for sustainable construction alternatives.

Regulators worldwide have phased out asbestos-containing panels due to severe respiratory health risks, mandating non-combustible, asbestos-free wall materials for high-rise residential and public commercial buildings. Meanwhile, traditional construction substrates—solid timber, vinyl siding, and gypsum drywall—carry critical limitations: wood rots and attracts pests, vinyl degrades under UV radiation, and standard drywall swells or crumbles in humid environments. Urbanization in Southeast Asia, Africa, and Latin America further fuels demand, as fast-tracked modular and prefabricated construction projects prioritize lightweight, long-lasting flat fiber cement sheets for rapid assembly. Green building frameworks such as LEED and BREEAM also award sustainability credits to fiber cement products manufactured with recycled cellulose fiber, pushing specifiers to replace carbon-intensive natural stone and metal cladding.

Non-asbestos Calcium silicate board.jpg

2. Core Composition, Manufacturing and Key Performance Properties

Fiber cement flat sheets are homogeneous composite panels relying on four core raw materials, with precise ratio control dictating final performance: ordinary Portland cement as the inorganic binder, silica sand for dimensional stability, cellulose pulp as flexible reinforcement fiber, and purified process water to form slurry. Premium manufacturers supplement the blend with trace mineral additives to reduce shrinkage and boost mildew resistance.

The standardized production workflow follows five tightly controlled stages: raw material homogenization, vacuum dewatered sheet forming, pre-curing air drying, high-pressure autoclave steam curing, and final cutting & surface finishing. Autoclave curing is the most technically critical phase: sustained high temperature and pressure trigger complete cement hydration, locking fibers into a rigid matrix that eliminates warping during long-term exposure to temperature and humidity swings.

Key inherent performance advantages differentiate flat fiber cement sheets from competing materials: Class A non-combustible fire resistance, low water absorption rates below 12%, 30+ year service life without rot or insect damage, and reliable sound insulation for partition wall systems. Thickness grading aligns with use cases: 3–6 mm thin sheets for ceiling linings, 8–15 mm medium boards for interior partitioning, and 16–25 mm heavy-duty panels for exterior cladding and industrial flooring substrates.

3. Critical Factors That Determine Final Product Quality

Three interconnected variables directly impact the durability and consistency of finished flat sheets, creating clear performance gaps between low-cost mass-produced goods and industrial-grade panels:

Fiber purity and proportion: Manufacturers cutting costs often substitute long kraft cellulose pulp with short recycled paper fiber, reducing tensile strength and increasing crack risk during thermal expansion. Premium formulations maintain 8–12% long coniferous pulp by dry weight to retain flexibility.
Autoclave curing duration: Budget facilities shorten autoclave cycles to boost daily output, resulting in incomplete cement hydration, high linear shrinkage, and visible surface warping after installation. Qualified producers maintain a minimum 12-hour high-pressure curing cycle.
Raw material particle uniformity: Uneven silica sand fineness or inconsistent cement grading creates density variances across a single sheet, leading to uneven paint absorption and structural weakness at panel edges.

4. Supplier Selection Standards for Global Buyers

Per ASTM C1186, EN 12467 and ISO 8336 international testing benchmarks, procurement teams must evaluate suppliers against verifiable technical documentation rather than superficial pricing:

Mandatory third-party test reports confirming asbestos-free composition, Class A fire rating, and dimensional shrinkage below 0.2% after wet-dry cycling.
Automated production line certification: Fully integrated mixing and forming equipment guarantees thickness tolerance within ±0.5 mm across batch orders, a critical detail for modular construction assembly.
End-to-end quality control records: Reputable manufacturers retain batch testing data for a minimum of five years, supporting project compliance audits for public infrastructure builds.
Specialized customization capacity: Suppliers with surface digital printing and pre-cutting capabilities reduce on-site construction labor time by up to 40% for commercial facade projects.

5. Widespread Application Scenarios

Flat fiber cement sheets deliver cross-industry versatility across three core construction verticals:

Residential construction: Interior bathroom/laundry wall backers, multi-family partition walls, and exterior weatherproof cladding that mimics stone or timber texture without ongoing maintenance.
Commercial and institutional builds: Office partition systems, school fire-rated corridor linings, retail mall decorative facades, and hotel Ceiling panels resistant to humidity and mold growth.
Industrial facilities: Food processing plant anti-mildew wall linings, factory fire separation partitions, agricultural warehouse corrosion-resistant siding, and temporary modular construction panels for site offices.

6. Persistent Industry Pain Points

Two structural challenges limit market penetration in premium high-rise projects:

Low-tier market homogenization: Over 60% of regional manufacturers compete purely on price by cutting raw material and curing standards, creating inconsistent product quality that erodes client trust in uncertified fiber cement flat sheets.
High-end technical gaps: Domestic mass production lines struggle to match imported ultra-flat panels with dimensional error under 0.3 mm per meter, restricting widespread adoption in luxury architectural facade projects.

7. Current Industry Trends and Future Development Directions

Three innovation trajectories will reshape the fiber cement flat sheet sector through 2035:

First, functional composite integration: Manufacturers are developing multi-layer integrated panels combining fire resistance, thermal insulation and sound attenuation to eliminate separate insulation installation steps, cutting overall project timelines.

Second, circular low-carbon production: Industrial waste materials including fly ash and mineral slag replace 15–25% of traditional Portland cement, slashing manufacturing carbon footprints by roughly 20%. Closed-loop recycling systems for demolished fiber cement panels are also being rolled out across European and North American production hubs.

Third, aesthetic customization upgrades: Digital UV printing technology enables limitless custom stone, metal, and wood grain finishes, allowing architects to achieve high-end facade designs without sourcing costly natural stone cladding. Long-term market forecasts indicate customized decorative flat sheets will capture over 35% of global fiber cement revenue by 2030.

For construction stakeholders ranging from architects and general contractors to bulk material distributors, fiber cement flat sheets represent a balanced solution that aligns safety, sustainability, and long-term cost efficiency—provided sourcing decisions prioritize verified manufacturing standards over upfront low-cost bids.
